ISO digital display IZOD Impact Tester Impact Test Method 3.5m/s

Product Categories
Dongguan Zhongli Instrument Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

ISO digital display IZOD Impact Tester Impact Test Method 3.5m/s

Brand Name : ZL

Model Number : ZL-3016C

Certification : ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C, Western Union

Supply Ability : 100 set per month

Delivery Time : 3-7 days

Packaging Details : IZOD Impact Tester Impact Test Method will be Packaged in wooden case （fumigation free）

Name : IZOD Impact Tester Impact Test Method

Model : ZL-3016C

Impact Speed : 3.5m/s

Pendulum Energy : 1J 2.75J 5.5J 11J 22J

Distance from the Center of the Pendulum Shaft to the Impact Blade : 0.322m

Pendulum Lifting Angle : 160°

Sample Type : meet the requirements of GB1843, JB/T8761 and ISO180 standards

Overall Dimensions of the Instrument : 550mm×350mm×850mm

Warranty period : 2 years

Contact Now

IZOD Impact Tester Impact Test Method

Rubber Test Machine:

rubber machine.pdf

●Purpose:

The digital display cantilever beam impact testing machine is used to test hard thermoplastics (including plates, pipes, plastic heterogeneous materials) and thermosetting plastics, filled and fiber-reinforced plastics, reinforced nylon, glass fiber reinforced plastics, ceramics, cast stone, electrical insulation materials, etc. Impact toughness of metallic materials, and impact strength of sheets of these plastics, including laminates. Intuitive digital display, simple structure, convenient operation and accurate data are the main features of this testing machine.

●Applicable standards:

ISO180

●Main Technical Parameters:

Impact Speed 3.5m/s
Pendulum Energy 1J 2.75J 5.5J 11J 22J

Distance from the Center of the

Pendulum Shaft to the Impact Blade

 0.322m
Pendulum Lifting Angle 160°
The distance from the impact blade to the top of the jaw is 22 mm
Blade Fillet Radius R=0.8mm
Sample Type meet the requirements of GB1843, JB/T8761 and ISO180 standards
Overall Dimensions of the Instrument 550mm×350mm×850mm
Power Supply AC220V, 50Hz
Net Weight of the Instrument 160kg

ISO digital display IZOD Impact Tester Impact Test Method 3.5m/s


Product Tags:

digital display IZOD Impact Tester



ISO IZOD Impact Tester



3.5m/s IZOD Impact Tester


Wholesale ISO digital display IZOD Impact Tester Impact Test Method 3.5m/s from china suppliers

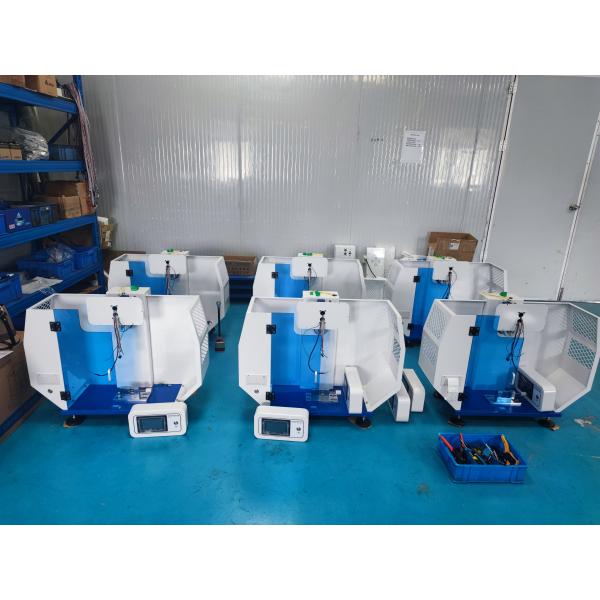

ISO digital display IZOD Impact Tester Impact Test Method 3.5m/s Images
